Detailed description of the operation of the PL7_MONOSTABLE function
|
|
|
Original instructions
|
|
Detailed description of the operation of the PL7_MONOSTABLE function
|
|
|
Original instructions
|
|

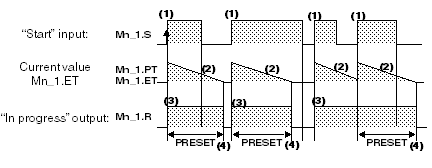

Phase
|
Description
|
|---|---|
|
1
|
Once a rising edge appears on input Mn_1.S of the monostable, the current value Mn_1.ET takes the preselection value Mn_1.PT.
|
|
2
|
The current value Mn_1.ET decreases to 0 at a rate of one unit for each pulse of the time base Mn_1.TB
|
|
3
|
The output bit Mn_1.R (Running) switches to 1 once the current value Mn_1.ET is different to 0.
|
|
4
|
When the current value Mn_1.ET = 0, the output bit Mn_1.R switches back to 0.
|
