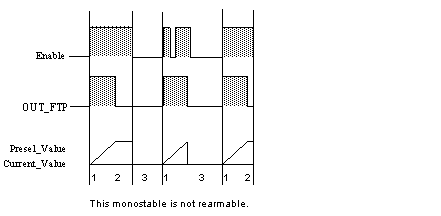

Detailed description of the operation of the FTP function
|
|
|
Original instructions
|
|
Detailed description of the operation of the FTP function
|
|
|
Original instructions
|
|
Phase
|
Action
|
Description
|
|---|---|---|
|
1
|
Rising edge on the EN input
|
The timer is launched (if it is not already running) and the current value Current_Value increases from 0 to the Presel_Value (in hundredths of seconds). The OUT_FTP output bit switches to 1.
|
|
2
|
When the current value has reached the Presel_Value
|
The OUT_FTP output bit returns to 0.
|
|
3
|
The Enable input and the OUT_FTP output are at 0
|
Presel_Value takes the value 0.
|
