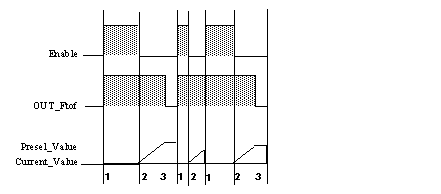

Detailed description of the operation of the FTOF function
|
|
|
Original instructions
|
|
Detailed description of the operation of the FTOF function
|
|
|
Original instructions
|
|
Phase
|
Action
|
Description
|
|---|---|---|
|
1
|
Rising edge on the Enable input
|
The current value takes the value 0 (even if the timer is running), and the OUT_Ftof output bit switches to 1 (or stays at 1).
|
|
2
|
During the rising edge of the Enable input
|
The timer is launched, and the current value increases from 0 to the Presel_Value (in hundredths of seconds).
|
|
3
|
When the current value has reached the Presel_Value
|
The OUT_Pulsor output bit returns to 0.
|
