Detailed description of the operation of the FTON function
|
|
|
Original instructions
|
|

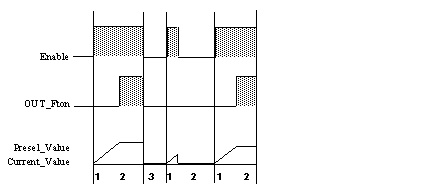

Detailed description of the operation of the FTON function
|
|
|
Original instructions
|
|
Phase
|
Action
|
Description
|
|---|---|---|
|
1
|
Rising edge on the Enable input
|
The timer is launched and its current value Current_Value increases by 0 towards Presel_Value (in hundredths of seconds).
|
|
2
|
The current value has reached Presel_Value
|
The output bit OUT_Fton switches to 1, then remains at 1 as long as the Enable input is at 1.
|
|
3
|
The Enableinput is at 0
|
The timer is stopped even if in run mode, and the Current_Value becomes 0.
|
