DATE_DINT_TO_STRING: Conversion of a date (DATE PL7) into a character string

Description of the function

The function DATE_DINT_TO_STRING is used to convert a PL7 date (double word) into a character string.

The additional parameters and can be configured.

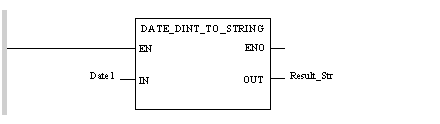

Representation in FBD

Representation:

Representation in LD

Representation:

Representation in IL

Representation:

LD Date1

DATE_DINT_TO_STRING

ST Result_Str

Representation in ST

Representation:

Result_Str:= DATE_DINT_TO_STRING(Date1);

Description of parameters

The following table describes the input parameters:

Parameter	Type	Comment
Date1	DINT	PL7 date to convert into character string format.

The following table describes the output parameters:

Parameter	Type	Comment
Result_Str	STRING	Result_Str is a string of 10 characters containing a date (not including the time) in the following format: YYYY-MM-DD. Example: ’2000-12-27’

Runtime errors

If the string Result_Str is too short to contain the date (length = less than 10 characters), the date is truncated and the bit %S15 is set to 1.

If Date1 cannot be interpreted and is not consistent in DATE format, the system bit %S18 is set to 1 and Result_Str =’YYYY-MM-DD’.

EN stands for ENable; it is an optional block input. When the EN input is enabled, an ENO output is set automatically.

If EN = 0, the block is not enabled; its internal program is not executed, and ENO is set to 0.

If EN = 1, the block's internal program is run and ENO is set to 1. If an error occurs, ENO is set to 0.

If the EN input is not connected, it is set automatically to 1.

ENO

ENO stands for Error NOtification; this is the output associated with the optional input EN.

If ENO is set to 0 (because EN = 0 or in case of an execution error):

the status of the function block outputs remains the same as it was during the previous scanning cycle that executed correctly;
the output(s) of the function, as well as the procedures, are set to "0".
