Device DDT Names for M580 RIO Adapters

Introduction

The Device DDT instance name can be defined manually but, when adding a module, a default device DDT instance name is defined by Control Expert.

NOTE: These instructions assume that you have already added a drop to your Control Expert project.

Access the Device DDT Tab

In Control Expert:

Step	Action	Comment
1	Expand EIO Bus in the Control Expert Project Browser to display the Modicon M580 remote drop	Project Browser > Project > Configuration > EIO Bus > Modicon M580 remote drop
2	Double-click the installed drop adapter in the Modicon X80 Remote drop.	The X80 performance EIO adapter dialog appears.

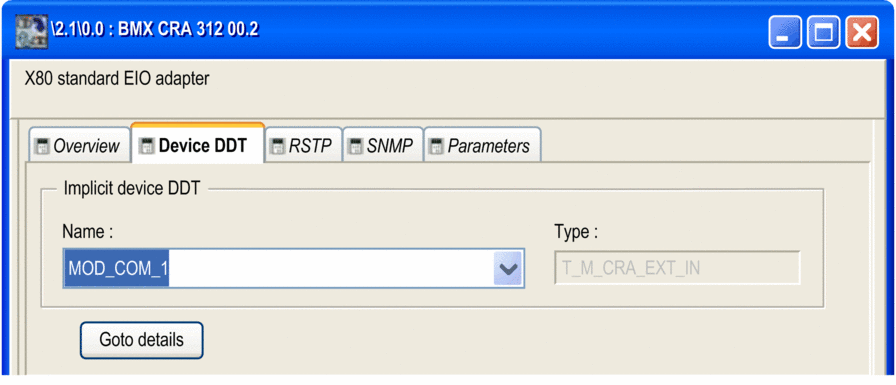

3	Select the Device DDT tab.

Drop Parameters

In the Control Expert Device DDT dialog, you can configure these parameters for the RIO drop:

Parameter		Description
Implicit device DDT	Name	A default device DDT instance name is defined by Control Expert.
Implicit device DDT	Type	module type (read only)
Goto details		Click this link to the Device DDT Data Editor screen.

Diagnostic Parameters

Click the Goto details button on the Device DDT screen to view the Variables tab in the Data Editor . The bits indicates healthy (1) or unhealthy/unconfigured (0).

View the drop diagnostic parameters in T_M_CRA_EXT_IN for an RIO drop module:

Name		Type	Bit	Description
IO_HEALTH_RACK0		WORD	—	health bits of rack 0: slots 0...15 NOTE: Slot 0 is on the Least Significant bit of the Word.
IO_HEALTH_RACK1		WORD	—	health bits of rack 1: slots 0...15 NOTE: Slot 0 is on the Least Significant bit of the Word.
DEVICE_NAME		string[16]	—	device name of the RIO drop
VERSION		WORD	—	firmware version (Maj, Min) (4 digits coded in BCD)
ROTARY_SWITCHES		BYTE	—	rotary switch value at power up
CRA_STATE		BYTE	—	1: CRA module is idle.
				2: CRA module is stopped.
				3: CRA module is running.
CRA_DIAGNOSTIC [WORD]	GLOBAL_IO_HEALTH	BOOL	0	0: At least one I/O module in the drop reports bad health.
	CCOTF_IN_PROGRESS	BOOL	1	CCOTF is in progress on the drop managed by the CRA.
	CCOTF_INVALID_CONF	BOOL	2	CCOTF is not valid on the drop managed by the CRA.
	IOPL_MISMATCH	BOOL	3	The I/O configuration in the drop differs from that expected by the CPU for the current application.
	SWITCH_CHANGE	BOOL	4	The rotary switch settings have changed since the last power up. This bit is reset if the rotary switch is returned to its original setting.
	DROP_COM_HEALTH	BOOL	5	This bit shows the drop communication health (set to 1 when communication is established between the RIO drop and the I/O scanner).
	REDUNDANT_POWER_SUPPLY_STATUS	BOOL	6	This bit shows that redundant power is present (1) or not present (0).
CYCLE_CURR_TIME		UINT	—	This word indicates the execution time of the last CRA cycle. It has values between [0.65535] with a resolution of 0.01 ms, therefore, the last cycle time is between [0.655] ms.
CYCLE_MAX_TIME		UINT	—	This word indicates the longest CRA cycle execution time since the last start. It has values between [0.65535] with a resolution of 0.01 ms, therefore, the longest cycle time is between [0,655] ms.
CYCLE_MIN_TIME		UINT	—	This word indicates the shortest CRA cycle execution time since the last start. It has values between [0.65535] with a resolution of 0.01 ms, therefore, the shortest cycle time is between [0.655] ms.
TIME_STAMP_RECORDS		UINT	—	This word contains the number of records available in the local drop event buffer.
TS_DIAGNOSTIC_FLAGS (WORD)	TIME_VALID	BOOL	0	The time is valid and synchronized.
	CLOCK_FAILURE CLOCK_NOT_SYNC	BOOL	1 2	If bit 1 = 1 & bit 2 = 1, since power- on CRA adapter has not received a response from NTP server. bit 1 = 0 & bit 2 = 1, CRA adapter has received a response from NTP server in the past but is not currently receiving the time from the NTP server bit 1 = 0 & bit 2 = 0, Time is valid, CRA adapter is receiving responses from the NTP server.
	BUFF_FULL	BOOL	3	The local drop event buffer is full.
TS_BUF_FILLED_PCTAGE		BYTE	—	This byte reports the percentage of the local drop event buffer filled (0...100).
TS_EVENTS_STATE		BYTE	—	Refer to Main States.
ETH_STATUS (BYTE)	PORT1_LINK	BOOL	0	0 = Port 1 (ETH1) link is down.
	PORT1_LINK	BOOL	0	1 = Port 1 (ETH1) link is up.
	PORT2_LINK	BOOL	1	0 = Port 2 link is down.
	PORT2_LINK	BOOL	1	1 = Port 2 link is up.
	PORT3_LINK	BOOL	2	0 = Port 3 link is down.
	PORT3_LINK	BOOL	2	1 = Port 3 link is up.
	ETH_BKP_PORT_LINK	BOOL	3	0 = Ethernet backplane link is down.
	ETH_BKP_PORT_LINK	BOOL	3	1 = Ethernet backplane link is up.
	RPI_CHANGE	BOOL	4	RPI change: EtherNet/IP RPI change is in progress (during CCOTF).
	REDUNDANCY_OWNER	BOOL	6	1 = Redundant owner is present.
	REDUNDANCY_OWNER	BOOL	6	0 = Redundant owner is not present.
	GLOBAL_STATUS NOTE: Refer to the SERVICE_STATUS byte below.	BOOL	7	0 = At least 1 service is not operating normally.
		BOOL	7	1 = All services are operating normally.
SERVICE_STATUS (BYTE)	RSTP_SERVICE	BOOL	0	0 = RSTP service is not operating normally.
	RSTP_SERVICE	BOOL	0	1 = RSTP service is operating normally or disabled.
	SNTP_SERVICE (reserved)	BOOL	1	0 = SNTP service is not operating normally.
	SNTP_SERVICE (reserved)	BOOL	1	1 = SNTP service is operating normally or disabled.
	PORT502_SERVICE	BOOL	2	0 = Port 502 service is not operating normally.
	PORT502_SERVICE	BOOL	2	1 = Port 502 service is operating normally or disabled.
	SNMP_SERVICE	BOOL	3	0 = SNMP service is not operating normally.
	SNMP_SERVICE	BOOL	3	1 = SNMP service is operating normally or disabled.
	ETH_BKP_FAILURE	BOOL	5	0 = Ethernet backplane hardware status is not OK.
	ETH_BKP_FAILURE	BOOL	5	1 = Ethernet backplane hardware status is OK.
	ETH_BKP_ERROR	BOOL	6	0 = An error is detected on the Ethernet backplane.
	ETH_BKP_ERROR	BOOL	6	1 = No errors are detected on the Ethernet backplane.
ETH_PORT_STATUS (BYTE)	These combined 2-bit values indicate the port conditions.	WORD	1/0	Ethernet backplane port 1 function
			3/2	Ethernet port 1 RSTP role
			5/4	Ethernet backplane port 2 function
			7/6	Ethernet port 2 RSTP role
			9/8	Ethernet backplane port 3 function
			11/10	Ethernet port 3 RSTP role
			12/13	Ethernet backplane port 4 function
			14/15	Ethernet port 4 RSTP role
	port function	—	0	disabled
			1	access port
			2	port mirror
			3	RIO network port
	RSTP role	—	0	alternate
			1	backup
			2	designated
			3	root
NTP_UPDATE		UINT	—	elapsed time (100 ms) since last update from NTP server
MAX_PACKET_INTERVAL		UINT	—	maximum packet interval (ms) for output packets (from scanner to adapter)
IN_BYTES		UINT	—	number of bytes (octets) received on interface
IN_ERRORS		UINT	—	number of inbound packets that contain detected errors
OUT_BYTES		UINT	—	number of bytes (octets) sent on interface
OUT_ERRORS		UINT	—	number of outbound packets that contain detected errors
SOE_UNCERTAIN		BOOL	—	The sequence of events SOE in the local drop event buffer is not known. The SOE_UNCERTAIN is reset when the sequence of events is OK.

Main States of the Time Stamp Source

The TS_EVENTS_STATE byte reports the main state of the source of the time stamp events:

Byte Value (hex)	Description
20	wait for client
31	ValuesSynchro requested and waiting for buffer below the threshold
32	ValuesSynchro started
40	event Stamping

Device DDT Types for I/O Modules

Refer to the following user guides for specific I/O module device DDT types:

I/O Module	User Guide Reference
Modicon X80 discrete input/output	Modicon M340 Using Unity Pro Discrete Input/Output Modules User Manual
Modicon X80 analog input/output	Modicon M340 with Unity Pro Analog Input/Output Modules User Manual
BMXEHC0800	Modicon M340 with Unity Pro Counting Module BMXEHC0800 User Manual
BMXEHC0200	Modicon M340 with Unity Pro Counting Module BMXEHC0200 User Manual
BMXNOM0200	Modicon M340 with Unity Pro Serial Link User Manual
BMXERT1604T	BMXERT1604T M340 ERT Module User Manual
