CCOTF Settings

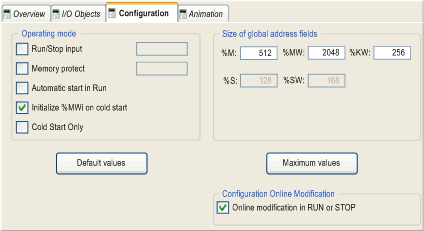

CPU Configuration Screen

To allow , access the CPU configuration screen in Control Expert, and select the Online modification in RUN or STOP check box:

Watchdog Values

Set the watchdog timer of each task to the minimum value of 64 ms.

To set the values, refer to Displaying and Modifying Task Properties.

CCOTF

(change configuration on the fly) A feature of Control Expert that allows a module hardware change in the system configuration while the system is operating. This change does not impact active operations.
