Linearization with square root (standardized range)
Use the parameter SQRT to linearize an analog input value.
The square root filter acts according to the following functions:
f(0) = 0, f(0.5) = 0.707, f(1) = 1.

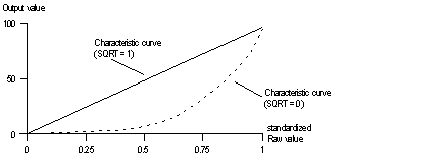

Characteristic curve of the square root filter
Correction of the "Offset" (zero offset compensation)
The OFFS_ADJ parameter can be used to modify (adjust) the calculated offset value of the output.
Correction of the automatically set value (OFFS_ADJ = 0) is not normally necessary.
Correction of "Range" (gain)
The RNGE_ADJ parameter can be used to modify (adjust) the calculated gain of the output.
Correction of the automatically set value (RNGE_ADJ = 0) is not normally necessary.
Example
Structure with I_FILTER
The inputs OFFS_ADJ and RNGE_ADJ of the I_FILTER function block are not used. They are set to "0" by default.
The following values apply for function block I_PHYS (I_PHYS_1):
Input values
(AVI030 10 V)
Output values
(I_PHYS)
0 V
0.0
2.5 V
5.0
5 V
7.07
10 V
10.0
The following values apply for I_PHYS (I_PHYS_2) function block:
Input values
(AVI030 10 V)
Output values
(I_PHYS)
0 V
0.0
2.5 V
2.5
5 V
5.0
10 V
10.0
