Explicit Exchanges: General

Introduction

Explicit exchanges are exchanges performed at the request of the user program by using the following functions:

READ_STS (read status words)
WRITE_CMD (write command words)
READ_PARAM (read adjustment parameters)
WRITE_PARAM (write adjustment parameters)
SAVE_PARAM (save adjustment parameters)
RESTORE_PARAM (restore adjustment parameters)
READ_TOPO_ADDR (read topological address)
TRF_RECIPE (recipe transfer)

These exchanges apply to a set of objects (status, commands, or parameters) of a single channel. Their parameter is an -type variable.

For a Quantum -type variable, use:

READ_STS_QX (for Quantum to read Modicon M340 drop status words)
WRITE_CMD_QX (for Quantum to send command to Modicon M340 drop)

For a Modicon M580 -type variable, use:

READ_STS_MX (for M580 to read (e)X80 local rack or Ethernet RIO module status words)
WRITE_CMD_MX (for M580 to send command to (e)X80 local rack or Ethernet RIO module)
READ_PARAM_MX (read parameters of a local rack module)
WRITE_PARAM_MX (write parameters to a local rack module)
SAVE_PARAM_MX (save parameters of a local rack module)
RESTORE_PARAM_MX (restore parameters of a local rack module)

NOTE: These objects are not essential to the programming of a specific-application function, but they do provide additional information (e.g.: terminal faulty, module missing, etc.) as well as additional commands for advanced programming of specific-application functions (for further information on application-specific explicit exchange objects, a chapter dedicated to language objects is featured in each specific-application manual).

NOTE: The following functions also perform explicit exchanges, their operation being specific to the specific-application concerned (parameters and management of the different exchanges).

The functions are detailed in each specific-application manual concerned, and a brief overview is provided in each library:

General principle for using explicit instructions

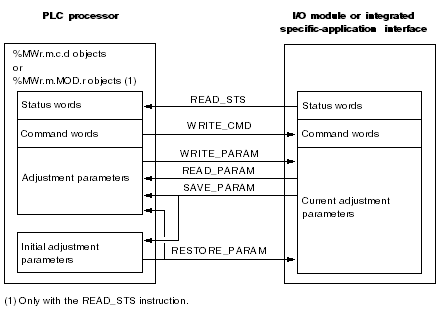

The illustration below shows the different types of explicit exchanges that can take place between the PLC processor and the module (or integrated interface):

Managing exchanges

It may prove beneficial during an explicit exchange to check its execution, so as to ensure, for example, that the data read is only taken into account once the exchange has been correctly performed.

For this, two types of information are available:

detection of an exchange in progress
end of exchange report

NOTE: You can’t send two explicit exchanges at the same time to the channels managed by the same Logical Node LN0 ch0&1; LN1 ch 2&3; LN2 ch 4&5; LN3 ch 6&7.The Logical Node can only process one request, the other request will generate an error.

The following diagram illustrates the principle for managing exchanges:

IODDT or %CHr.m.c logical channel

An IODDT associated with a %CHr.m.c channel or the representation of a %CHr.m.c channel is a general syntax for updating all objects of the same type associated with this channel or group of channels, by way of explicit instructions.

Example: READ_STS(IODDT_Var)or READ_STS(%CH1.2.3) (read status words of channel 3 of module 2 located in rack 1).

NOTE: For a group of channels, any channel of the group can be used, but the exchange will apply to all channels of the group (Analog and Discrete) READ_STS(%CH3.2.8)will have the same effect as READ_STS(%CH3.2.9).

Limit regarding the Fipio bus

The number of explicit exchange functions that can be activated simultaneously on the Fipio bus is limited to 24.

An exchange request addressed to the Fipio bus may take several cycles of the master task, thus making it necessary to manage the words of the exchange management parameters for all explicit variable exchanges.
