WRITE_INPUT_AREBOOL_16 is used to simulate (write) values at variables, IODDT variables, or state RAM. The inputs are written directly when WRITE_INPUT_AREBOOL_16 is invoked.
The maximum managed array size is 16
The function block can be used with a real PLC and the PLC simulator.
NOTE: When using the WRITE_INPUT_AREBOOL_16 EF with RIO networks, the behavior in simulation mode could be different from PLC behavior. The inputs are set by the WRITE_INPUT_AREBOOL_16 EF but are overwritten by the value sent by the RIO scanner in the OUT phase of the PLC scan.
The parameters and can be configured.
Representation:
Representation:
Representation:

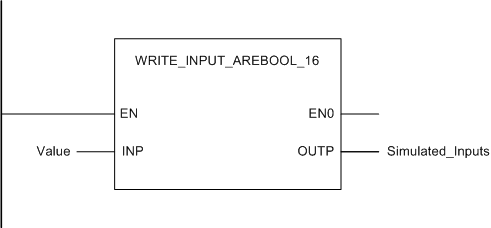

CAL WRITE_INPUT_AREBOOL_16 (INP:=Value, OUTP=>Simulated_Inputs)
Representation:
WRITE_INPUT_AREBOOL_16 (INP:=Value, OUTP=>Simulated_Inputs);
The following table describes the input parameters:
|
Parameter
|
Type
|
Comment
|
|
INP
|
|
Value to be assigned to the array elements. Each bit is assigned to one array element according to the bit order.
|
The following table describes the output parameters:
|
Parameter
|
Type
|
Comment
|
|
OUTP
|
|
Array of variables to be modified
|
