B818 24 Vdc Output, Field Connections
(Original Document)
About us
Terminal Numbering and Output Functions
User connections are made to a standard screw terminal strip. The rigid wiring system permits module insertion or removal without disturbing the wiring.

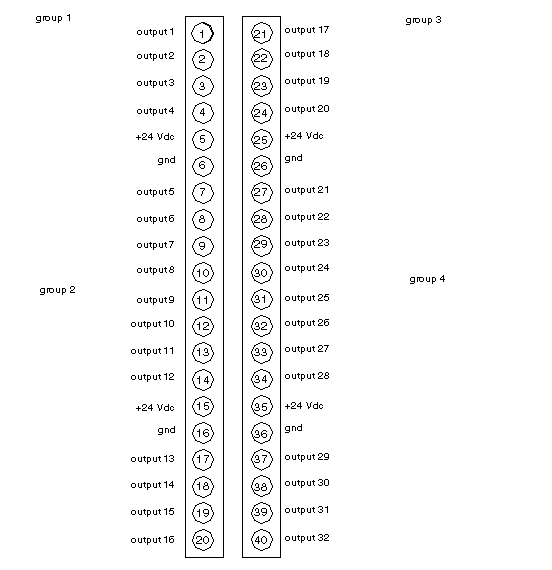

The following illustration shows how to field connect the unit.
