User connections are made to a standard screw terminal strip.The rigid wiring system permits module insertion or removal without disturbing the wiring.

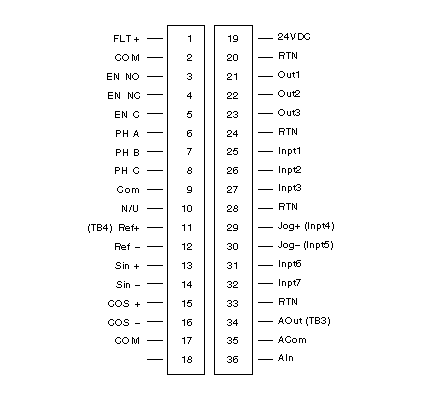

Terminal Numbering and Output Connections
The following diagram shows terminal numbering and output connections for the B885-1xx module.

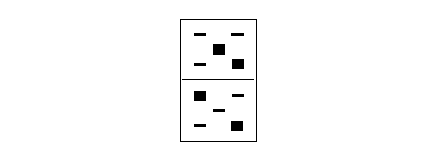

Mechanical Keying
The following figure shows the keying for the B885-1xx module.
