User connections are made to a standard screw terminal strip.The rigid wiring system permits module insertion or removal without disturbing the wiring.

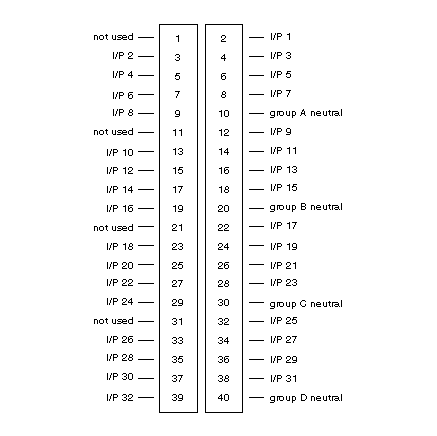

Terminal Numbering and Output Connections
The following diagram shows terminal numbering and output connections for the the B819-232 module.

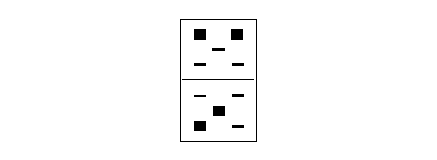

Mechanical Keying
The following figure shows the keying for the the B819-232 module.
