B883–101 and B883–111 Parameter Configuration
|
|
|
(Original Document)
|
|
B883–101 and B883–111 Parameter Configuration
|
|
|
(Original Document)
|
|

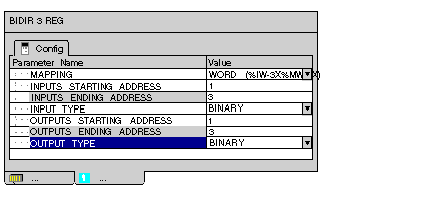

Parameter Name
|
Default Value
|
Value (Options Available)
|
|---|---|---|
|
Mapping
|
WORD (%IW-3X%MW-4X)
|
BIT (%I-1X%M-0X)
|
|
Inputs Starting Address
|
1
|
1
|
|
Inputs Ending Address
|
3
|
48
|
|
Input Type
|
BINARY
|
-
|
|
Outputs Starting Address
|
1
|
1
|
|
Outputs Ending Address
|
3
|
48
|
|
Output Type
|
BINARY
|
BCD
|
|
|
Modsoft, Concept, ProWORX
|
Control Expert
|
|---|---|---|
|
Reference Type
Inputs
|
Mapped as 48 bits input
1x
or
Mapped as 3 registers input
3x
|
Mapped as 48 bits input
%Ix
or
Mapped as 3 words input
%IWx
|
|
Reference Type
Outputs
|
Mapped as 48 bits output
0x
or
Mapped as 3 registers output
4x
|
Mapped as 48 bits output
%Mx
or
Mapped as 3 words output
%MWx
|
|
Output Type
|
BIN/BCD
|
BIN/BCD
|
