B819-232 Parameter Configuration
|
|
|
(Original Document)
|
|
B819-232 Parameter Configuration
|
|
|
(Original Document)
|
|

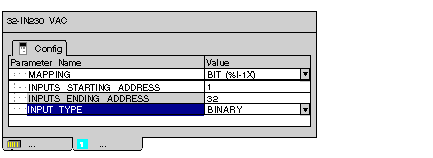

Parameter Name
|
Default Value
|
Value (Options Available)
|
|---|---|---|
|
Mapping
|
BIT (%I-1X)
|
WORD (%IW-3X)
|
|
Outputs Starting Address
|
1
|
1
|
|
Outputs Ending Address
|
32
|
2
|
|
Output Type
|
BINARY
|
BCD
|
|
|
Modsoft, Concept, ProWORX
|
Control Expert
|
|---|---|---|
|
Reference Type
|
Mapped as 32 bits input
1x
or
Mapped as 2 registers input
3x
|
Mapped as 32 bits input
%Ix
or
Mapped as 2 words input
%IW
|
|
Input Type
|
BIN/BCD
|
BIN/BCD
|
