B881–001 Parameter Configuration
|
|
|
(Original Document)
|
|
B881–001 Parameter Configuration
|
|
|
(Original Document)
|
|

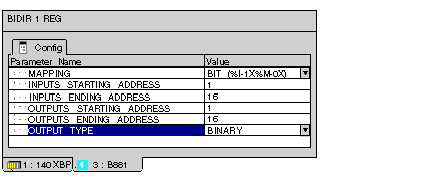

Parameter Name
|
Default Value
|
Value (Options Available)
|
|---|---|---|
|
Mapping
|
BIT (%I-1X%M-0X)
|
WORD (%IW-3X%MW-4X)
|
|
Inputs Starting Address
|
1
|
1
|
|
Inputs Ending Address
|
16
|
1
|
|
Outputs Starting Address
|
1
|
1
|
|
Outputs Ending Address
|
16
|
1
|
|
Output Type
|
BINARY
|
BCD
|
|
|
Modsoft, Concept, ProWORX
|
Control Expert
|
|---|---|---|
|
Reference Type Inputs
|
Mapped as 16 bits input
1x
or
Mapped as 1 register input
3x
|
Mapped as 16 bits input
%Ix
or
Mapped as 1 word input
%IWx
|
|
Reference Type Outputs
|
Mapped as 16 bits output
0x
or
Mapped as 1 register output
4x
|
Mapped as 16 bits output
%Mx
or
Mapped as 1 word output
%MWx
|
|
Output Type
|
BIN/BCD
|
BIN/BCD
|
