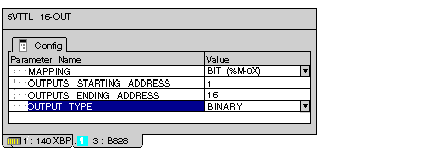

B828–016 Parameter Configuration
|
|
|
(Original Document)
|
|
B828–016 Parameter Configuration
|
|
|
(Original Document)
|
|
Parameter Name
|
Value
(Default)
|
Value
(Options Available
|
|---|---|---|
|
Mapping
|
BIT (%M-0X)
|
WORD (%MW-4X)
|
|
Outputs Starting Address
|
1
|
1
|
|
Outputs Ending Address
|
16
|
1
|
|
Output Type
|
BINARY
|
BCD
|
|
|
Modsoft, Concept, ProWORX
|
Control Expert
|
|---|---|---|
|
Reference Type
|
Mapped as 16 bits output
0x
or
Mapped as 1 register output
4x
|
Mapped as 16 bits output
%Mx
or
Mapped as 1 word output
%MWx
|
|
Output Type
|
BIN/BCD
|
BIN/BCD
|
