B846-001 Parameter Configuration
(Original Document)
About us
Parameter and Default Values

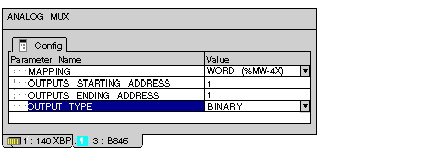

Parameter configuration window
Module configuration
Parameter Name
Default Value
Value Options Available
Mapping
WORD (%MW-4X)
-
Outputs Starting Address
1
-
Outputs Ending Address
1
-
Output Type
BINARY
BCD
Mapping parameter references
984LL, Concept, ProWORX
Control Expert
Reference Type
Mapped as 1 register output
4x
Mapped as 1 word output
%MWx
Output Type
BIN/BCD
BIN/BCD
