B803–008 115 Vac Input, Field Connections
(Original Document)
Overview
User connections are made to a standard screw terminal strip.The rigid wiring system permits module insertion or removal without disturbing the wiring.
Terminal Numbering and Input Connections

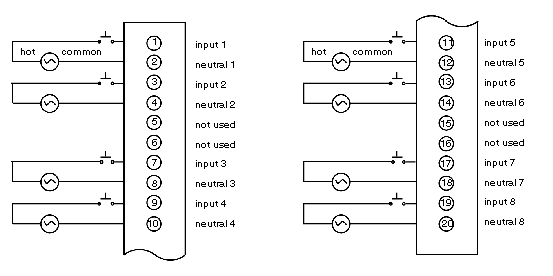

The following diagram shows terminal numbering and input connections for the B803–008 module.
