The B829–116 fast response 5 V TTL input module converts signals from 16 independent 5 V logic-compatible inputs into signals used by the PLC. Each input is capable of conditioning signals from TTL devices or DTL devices for use by the PLC

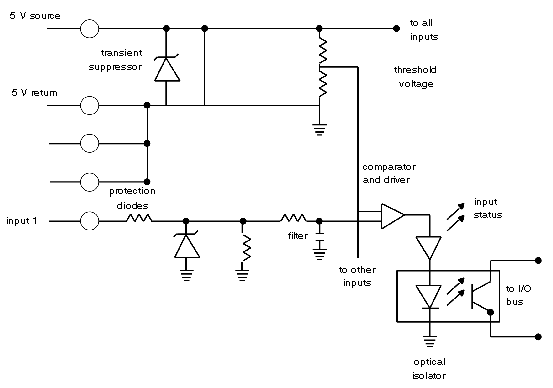

Simplified Schematic
Following is a simplified schematic of the B829–116 fast response 5 V TTL input module.
