B832-016 24 Vdc Output (True Low), Field Connections

B832–016 24 Vdc Output (True Low), Field Connections

(Original Document)

Overview

User connections are made to a standard screw terminal strip. The rigid wiring system permits module insertion or removal without disturbing the wiring.

Terminal Numbering and Output Connections

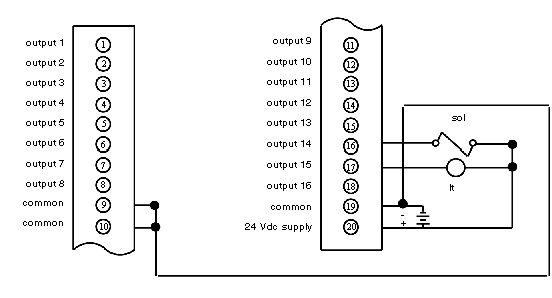

The following diagram shows terminal numbering and output connections for the B832–016 24 Vdc (True Low) output module
