B833-016 24 Vdc Input (True Low), Field Connections

B833–016 24 Vdc Input (True Low), Field Connections

(Original Document)

Overview

User connections are made to a standard screw terminal strip. The rigid wiring system permits module insertion or removal without disturbing the wiring.

Terminal Numbering and Input Connections

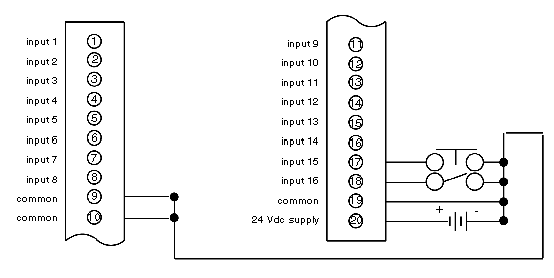

The following diagram shows terminal numbering and input connections for the B833–016 24 Vdc (True Low) input module.
