User connections are made to a standard screw terminal strip. The rigid wiring system permits module insertion or removal without disturbing the wiring.

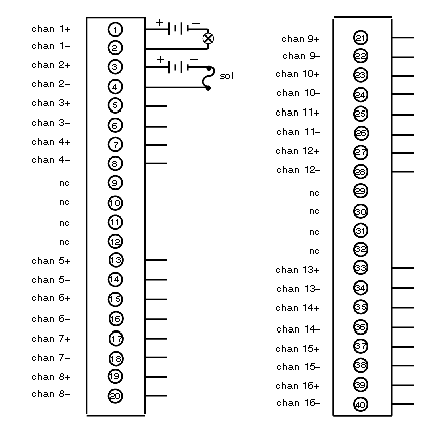

Terminal Numbering and Output Connections
The following figure shows the terminal numbering and output connections required.

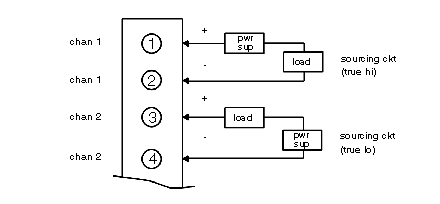

Typical User-Side Field Connector Circuitry
The following figure shows an example of typical user-side field connector circuitry.
