User connections are made to a standard screw terminal strip. The rigid wiring system permits module insertion or removal without disturbing the wiring.
Terminal Numbering and Output Connections

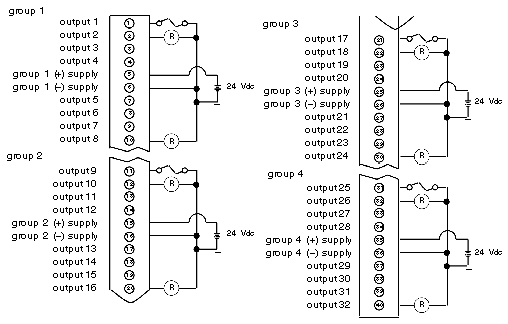

The following diagram shows terminal numbering and output connections for the B838–032 24 Vdc (True High) output module
