B849–016 48 Vac/Vdc Input (True High), Field Connections
(Original Document)
Overview
User connections are made to a standard screw terminal strip. The rigid wiring system permits module insertion or removal without disturbing the wiring.
Terminal Numbering and Input Connections

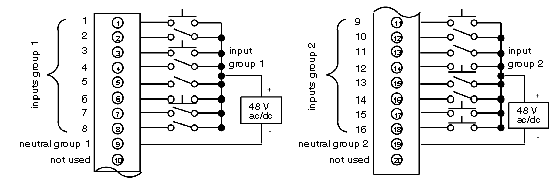

The following diagram shows terminal numbering and input connections for the B849–016 48 V ac/dc input module.
NOTE: To use both input groups with a single power supply, jump terminals #9 and #19.
