User connections are made to a standard screw terminal strip. The rigid wiring system permits module insertion or removal without disturbing the wiring.
Terminal Numbering and Input Connections

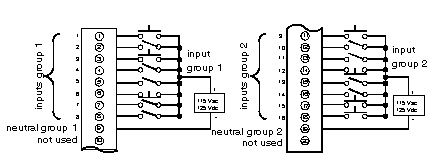

The following diagram shows terminal numbering and input connections for the B853–016 115 Vac/125 Vdc (True High) input module.
NOTE: To use both input groups with a single power supply, jump terminals #9 and #19.
