Module Placement
The 140 HLI 340 00 High Speed Interrupt module’s functionality depends on its location.
The following list shows the available modes depending on the location:
NOTE: The 140 HLI 340 00 module cannot be connected to a secondary rack.
Parameters and Default Values

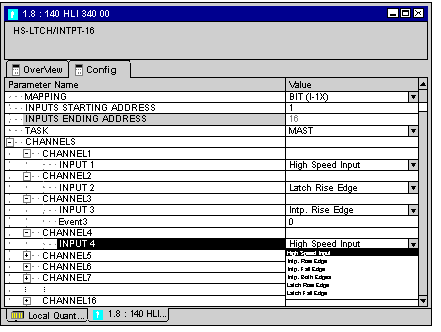

Parameter Configuration Window
Parameter Description
Name
Default Value
Options
Description
Mapping
BIT (%I-1x)
WORD (%IW-3X)
Inputs Starting Address
1
Inputs Ending Address
16
Task
MAST
FAST
AUX0
AUX1
AUX2
AUX3
Channels
Input n
High Speed Input
Intp. Rise Edge
Intp. Fall Edge
Intp. Both Edges
Latch Rise Edge
Latch Fall Edge
Interrupt modes only available in local rack, latch only in local- and expansion rack
Event n
0
1 - 127
