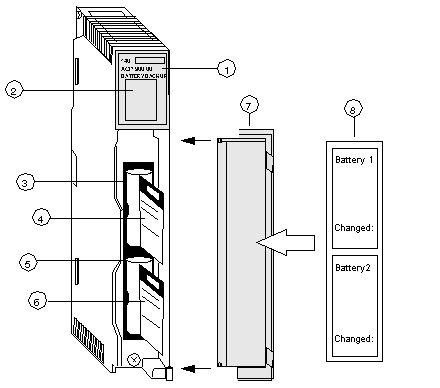

The following figure shows the battery module components.
1
Model Number, Module Description, Color Code
2
LED Display
3
Battery Slot 1 (with battery installed)
4
Battery Access Tape (for removal/replacement)
5
Battery Slot 2 (with battery installed)
6
Battery Access Tape (for removal/replacement)
7
Removable Door
8
Customer Identification Label (Fold label and place it inside door)
The 140 XCP 900 00 provides RAM backup power for expert modules. One non-rechargeable 3.6 V lithium battery is provided and is accessible from the front of the module in Battery Slot 1 (the upper slot) for easy removal when it is necessary to change it.
NOTE: Extended backup is provided when a second battery is installed in Battery Slot 2 (the lower slot).
