140 XSM 002 00: 16 Point Discrete Input Simulator
Original instructions
About us
Function
The 140 XSM 002 00 simulator consists of 16 toggle switches that can generate up to 16 binary input signals to the 140 DAI 540 00 and the 140 DAI 740 00 AC input modules.

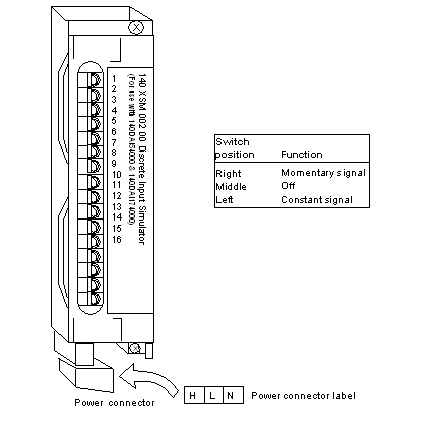

Illustration
NOTE: Voltage source range is 24 ... 240 VAC.
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
When using this simulator module with the 140 DAI 540 00 or 140 DAI 740 00 input modules, do not to come in contact with the supplied 115 or 230 VAC located at the bottom of the simulator module.
Failure to follow these instructions will result in death or serious injury.
