Principle of addressing two racks at the same address
(Original Document)
About us
Illustration

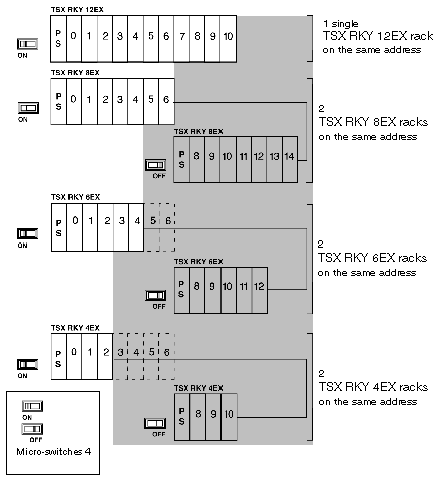

The following diagram shows the principle of addressing two racks at the same address.
NOTE:
  • TSX RKY 12EX racks cannot have a second rack at the same address.
  • TSX RKY 8EX/6EX/4EX racks can be intermixed.
  • Two TSX RKY 8EX/6EX/4EX racks at the same address will not necessarily be linked one after the other. The order of physical distribution is not important.
