General introduction to Process and AS-i power supply modules
(Original Document)
Process power supply modules
A wide range of power supply units and modules is offered to cater for the needs of users in the best possible way. Controlled by Premium or Atrium PLCs and designed to supply the peripherals of an automation system with 24 VDC, they can all be mounted on a Telequick AM1-PA mounting board and some can be mounted on a AM1-DP200 / DE 200 central DIN rail.
See Process power supplies.
Illustration
Different types of Process power supply:
AS-i power supply modules
These are designed to supply 30 VDC to components connected to the AS-i field bus.
Illustration

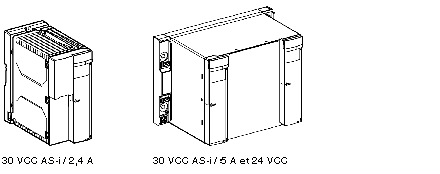

Types of AS-i power supply:
