This address must be the same as the one which will be configured in the configuration screen of the programming software. This configuration is carried out using micro-switches found on the processor card.
Rack address: the processor’s virtual slot is always situated on the rack with address 0.
Processor position: the virtual position of the processor will depend upon the type of power supply installed on the rack:
-
single format power supply: virtual position of processor = 00,
-
double format power supply: virtual position of processor = 01.
Default configuration:
-
rack address = 0,
-
module position = 00.

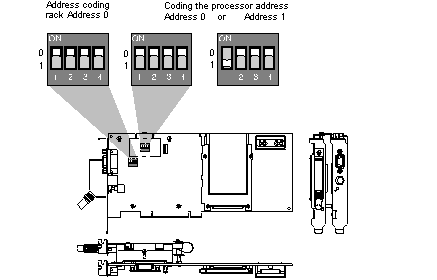

Explanatory diagram:
