Atrium PLC station
(Original Document)
About us
General
Atrium TSX PCI 57 coprocessors are built into a PC and manage an entire PLC station composed of the same Input/Output modules as the Premium processors (i.e. "Discrete", analog, application and communication modules). These modules can be distributed over one or more racks connected to the X Bus.
Illustration

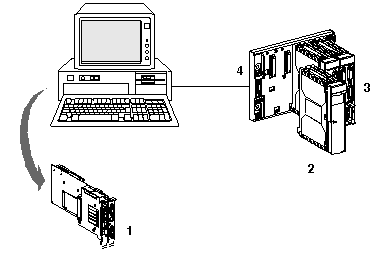

Example of an Atrium PLC station:
Number table
Description according to the addresses in the diagram above:
Number
Description
1
Coprocessor.
2
Supply module.
3
Input/Output modules.
4
TSX RKY rack.
