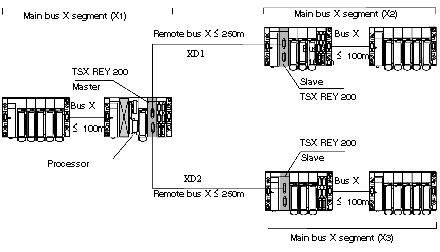

The figure below summarizes the maximum distances authorized for the different bus X segments and bus X extensions:
-
for each bus X segment (X1, X2 or X3): maximum length 100 meters,
-
for each bus X extension (XD1 or XD2): maximum length 250 meters,
Illustration:
Taking this into account, the maximum distance possible between the processor and the remote modules is 350 meters.
This distance of 350 meters is only possible for single discrete input/output modules. The following illustrations indicate the restrictions in relation to module type.

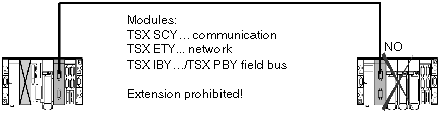

NOTE: Extension is prohibited for communication modules TSX SCY •••/TSX ETY•••/TSX IBY •••/TSX PBY •••. These modules must be located on the main segment of the bus X1

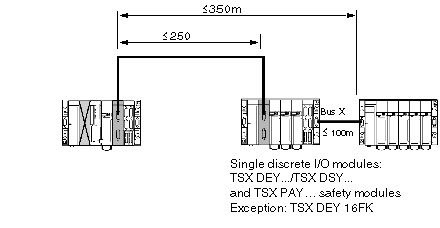

Safety and single discrete I/O modules
Illustration:

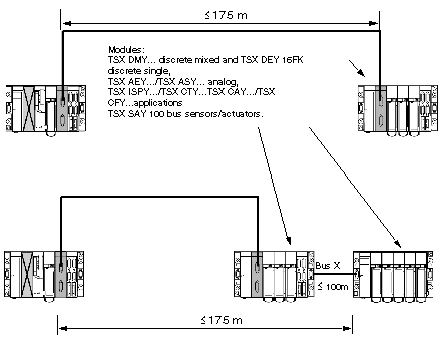

Mixed discrete I/O, analog, application-specific and bus sensor/actuator modules
Illustration:
NOTE: for the following modules:
-
TSX DEY 16 FK with PV index≥ 06,
-
TSX DMY 28FK / 28RFK,
-
TSX AEY 810/1614,
-
TSX ASY 410 with PV index ≥ 11,
-
TSX ASY 800,
-
TSX CTY 2C
-
TSX CAY 22/42/33,
maximum distance authorized (extension cable and bus X cable length): 225 meters.
Illustration:
