mounting and fixing racks
(Original Document)
About us
Introduction
TSX RKY•• and TSX RKY••EX racks can be mounted:
The rules for installation are to be always followed, whatever the type of mounting.
Mounting on 35 mm wide DIN mounting rail
Fixing with four M6x25 screws + washers and AF1-CF56 ¼ turn sliding nuts.

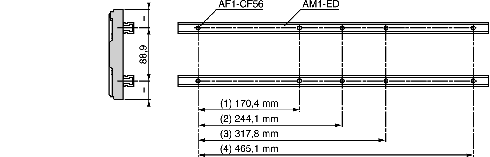

Diagram illustrating the mounting
(1) TSX RKY 4EX
(2) TSX RKY6 and TSX RKY 6EX
(3) TSX RKY8 and TSX RKY 8EX
(4) TSX RKY 12 and TSX RKY 12EX
Mounting on a panel

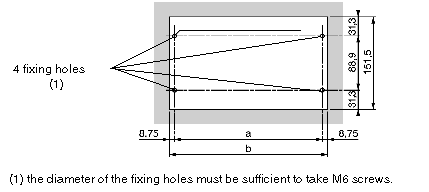

Plan of screw-holes (dimensions in mm):
(1) The diameter of the fixing holes must be such as to allow M6 screws.
a and b see table.
Mounting on an AM1-PA Telequick mounting grid
Fix the rack using four M6x25 screws + washers and AF1-EA6 clips nuts.
Plan of screw-holes (dimensions in mm):
the following table presents mounting characteristics according to the different TSX RKY racks:
Racks
a
b
Depth
TSX RKY 4EX
170.4 mm
187.9 mm
16 mm
TSX RKY 6/6EX
244.1 mm
261.6 mm
16 mm
TSX RKY 8/8EX
317.8 mm
335.3 mm
16 mm
TSX RKY 12/12EX
465.1 mm
482.6 mm
16 mm
NOTE: Maximum tightening torque for fixing screws: 2.0.N.m.(1.6 Lb.-ft.)
