Non-insulated power supply modules TSX PSY 1610/3610

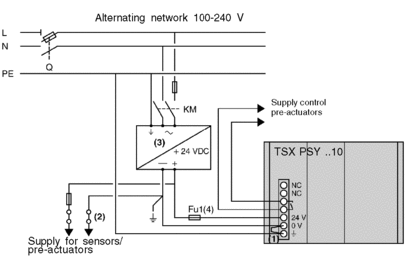

Connecting a single-rack PLC station with a ground-referenced network:

Q: General section switch,

KM: Circuit contactor-breaker,

(1): External shunt provided with the power supply module,

(2): Insulating connector bar for finding grounding faults. In this case, it is necessary to switch off the supply in order to disconnect the network from the ground,

(3): Optional use of a process power supply module

(4): Protective fuse, (4 A, with time-delay) only necessary with the TSX PSY 3610 power supply module.

The TSX PSY 1610 power supply module is fitted during manufacture with a protective fuse located under the module and in series on the 24V input (3.5 A, 5x20 time-delay fuse).

Connecting a multi-rack PLC station with a ground-referenced network:

Q: General section switch,

KM: Circuit contactor-breaker,

(1): External shunt provided with the power supply module,

(2): Insulating connector bar for finding grounding faults. In this case, it is necessary to switch off the supply in order to disconnect the network from the ground,

(3): Optional use of a process power supply module,

(4): Protective fuse, (4 A, with time-delay) only necessary with the TSX PSY 3610 power supply module.

The TSX PSY 1610 power supply module is fitted during manufacture with a protective fuse located under the module and in series on the 24V input (3.5 A, 5x20 time-delay fuse).

NOTE: If there are several PLC stations supplied by the same network, the principles of connection are identical.

TSX PSY 5520 isolated power supply module

Connecting a single-rack PLC station with a ground-referenced network:

Q: General section switch,

KM: Circuit contactor-breaker,

(1): Insulating connector bar for finding grounding faults,

(2): Optional use of a process power supply.

NOTE: Protective fuse: the TSX PSY 5520 power supply modules are fitted during manufacture with a protective fuse. This fuse, in series with the 24/48V input, is located inside the module and cannot be accessed.

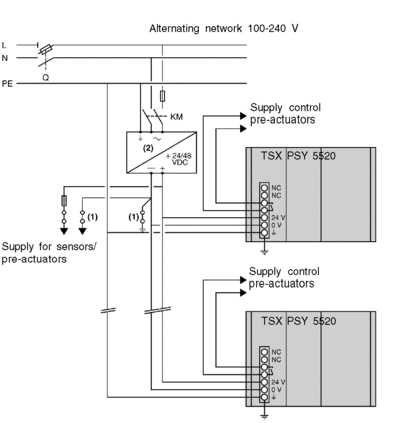

Connecting a multi-rack PLC station with a ground-referenced network:

Q: General section switch,

KM: Circuit contactor-breaker,

(1): Insulating connector bar for finding grounding faults,

(2): Optional use of a process power supply.

NOTE: Protective fuse: the TSX PSY 5520 power supply modules are fitted during manufacture with a protective fuse. This fuse, in series with the 24/48V input, is located inside the module and cannot be accessed.
NOTE: If there are several PLC stations supplied by the same network, the principles of connection are identical.
