Definition

The optical strings necessary to connect the Control Intranet modules, hubs and switches are supplied in 5 meter lengths with the options of suitable optical connectors.

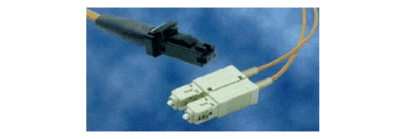

MT-RJ / SC duplex optical patch (490NOC00005)

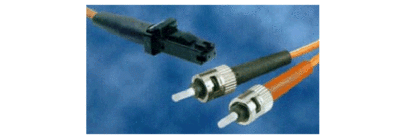

MT-RJ / ST duplex optical patch (490NOT00005)

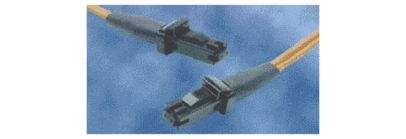

MT-RJ / MT-RJ optical patch (490NOR00005)

Two important precautions must be taken by the installer and the user:

• 1. Do not bend these stringss (the minimum radius is 10 cm).

• 2. Pull or twist the cable and its connectors as less as possible.

On the other hand, there is no minimum distance to be observed between an optical cable and any cable or equipment which could interfere with it. Special cases of strong ionizing rays is not the purpose of this manual.
