General Description
After configuring Ethernet communication, the Ethernet module parameters can be configured.
When you select the model family, all the corresponding communication module configuration options are displayed automatically. The module services allow the following settings to be made:
Setting
Description
No
Setting deactivated.
Yes
Setting activated. Parameters are set using the Control Expert menu window.
Web
Setting activated. Parameters are set using the configured NOE Web pages. Control Expert menu window deactivated.
Note: Not available for every model family.
NOTE: The availability of the displayed settings depends on the selected model family and can vary.

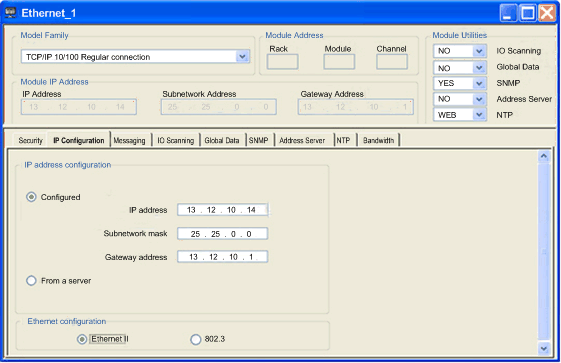

The screen shot shows an example of the menu window of the NOE Ethernet module (TCP/IP 10/100 Regular connection).
Parameter description:
Parameter
Description
Model Family
Quantum NOE Ethernet Module settings
Module Address
Not used
Module Utilities
For module service configuration options, see above
Module IP Address
Overview of the IP address parameter set

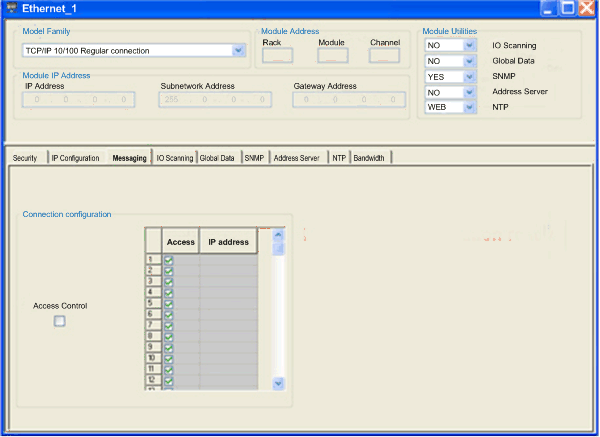

After selecting the model family TCP/IP 10/100 Regular Connection, the following mask appears. The image also displays the activated module services.
NOTE: The availability of the displayed register depends on the selected model family and can vary.
After selecting the Yes option in module services, the tab corresponding to the module is activated.
