This page lists the various viewer services supported by the default Web site of the module and provides links for accessing the services you require.

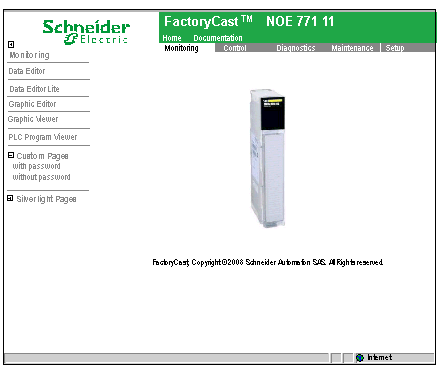

The Monitoring home page looks like this:
To access a service, click on a link. The services include:
-
Data editor: for creating variable data tables to determine their values when the table is animated.
-
Data editor lite: for creating variable data tables to determine their values when the table is animated. (This editor contains fewer features than the standard Data editor.)
-
Graphic editor: for creating graphics to determine the values of variables when the graphic is animated.
-
Graphic viewer: for viewing graphics to determine the values of variables when the graphic is animated.
-
PLC Program viewer: Display Control Expert programs in run mode using a web browser.
-
Password-protected custom pages: for restricting access to web pages created by the user.
-
Custom pages without password protection: for unrestricted access to web pages created by the user.
-
Silverlight pages: for viewing user-defined pages created with Microsoft Expression Blend® software that have been added to the web site
