The Quantum 140 DIO 330 00 Intrinsically Safe Digital Output module provides intrinsically safe power to a variety of components such as solenoid valves, LEDs, etc., located in a hazardous area. This module is for use with sink devices only.

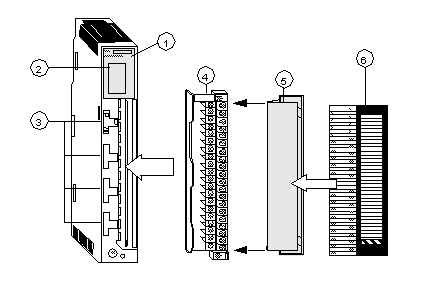

The following figure shows the 140 DIO 330 00 module and its components.
1
Model Number, Module Description, Color Code
2
LED Display
3
Fuse Cutouts
4
Field Wiring Terminal Strip
5
Removable Door
6
Customer Identification Label (Fold label and place it inside door)
