The Quantum 140 AII 330 10 Intrinsically Safe Current Input module interfaces with eight intrinsically safe analog inputs which are software-configurable. The module accepts 0 ... 20 mA, 0 ... 25 mA, and 4 ... 20 mA inputs. The module allows any mix and match of current input ranges that can be configured by the software. The module provides power to intrinsically safe transmitters located in hazardous areas.

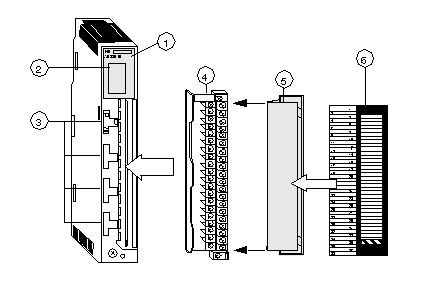

The following figure shows the 140 AII 330 10 Intrinsically Safe module and its components.
1
Model Number, Module Description, Color Code
2
LED Display
3
Fuse Cutouts
4
Field Wiring Terminal Strip
5
Removable Door
6
Customer Identification Label (Fold label and place it inside door)
