Parameter Configuration
|
|
|
Original instructions
|
|
Parameter Configuration
|
|
|
Original instructions
|
|

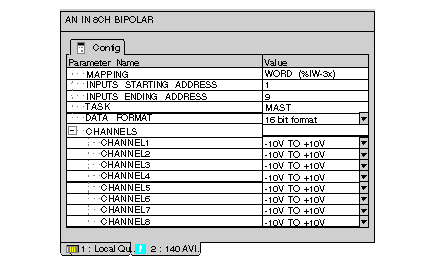

Name
|
Default Value
|
Options
|
Description
|
|---|---|---|---|
|
Mapping
|
WORD (%IW-3X)
|
-
|
|
|
Inputs Starting Address
|
1
|
-
|
|
|
Inputs Ending Address
|
9
|
-
|
|
|
Task
(Grayed if module in other than local)
|
MAST
|
FAST
AUX0
AUX1
AUX2
AUX3
|
fixed to MAST if module in other than local
|
|
Data Format
|
16 bit format
|
Volt Meter
12 bit format
|
|
|
Channels
|
|||
|
Channel1
|
-10 TO +10V
|
-10V TO +10V
0V TO +10V
-5V TO +5V
0V TO +5V
+1V TO +5V
-20 mA TO +20mA
|
|
|
Channel2-Channel8
|
see Channel1
|
||
