Parameter Configuration
|
|
|
Original instructions
|
|

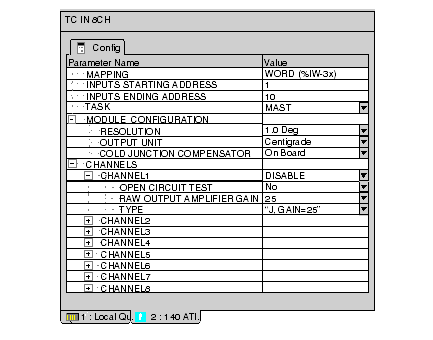

Parameter Configuration
|
|
|
Original instructions
|
|
Name
|
Default Value
|
Options
|
Description
|
|---|---|---|---|
|
Mapping
|
WORD (%IW-3X)
|
-
|
|
|
Inputs Starting Address
|
1
|
-
|
|
|
Inputs Ending Address
|
10
|
-
|
|
|
Task
(Grayed if module in other than local)
|
MAST
|
FAST
AUX0
AUX1
AUX2
AUX3
|
fixed to MAST if module in other than local
|
|
Module_Configuration
|
|||
|
Resolution
|
1.0 Deg
|
0.1 Deg
|
|
|
Output Unit
|
Centigrade
|
Fahrenheit
|
|
|
Cold Junction Compensator
|
On Board
|
Channel 1
|
|
|
Channels
|
|||
|
Channel1
|
DISABLE
|
ENABLE
|
|
|
Open Circuit Test
|
No
|
Yes
|
|
|
Raw Output Amplifier Gain
|
25
|
100
|
|
|
Type
|
"J, Gain=25"
|
"K, Gain=25"
"E, Gain=25"
"T, Gain=100"
"S, Gain=100"
"R, Gain=100"
|
|
|
Channel2-Channel8
|
see Channel1
|
||
