Parameter Configuration
|
|
|
Original instructions
|
|

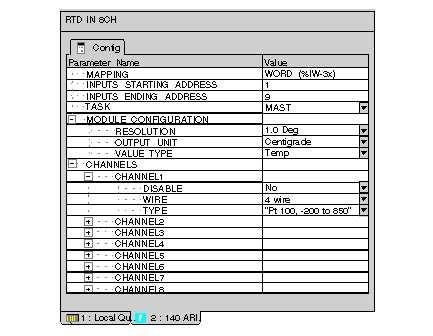

Parameter Configuration
|
|
|
Original instructions
|
|
Name
|
Default Value
|
Options
|
Description
|
|---|---|---|---|
|
Mapping
|
WORD (%IW-3X)
|
-
|
|
|
Inputs Starting Address
|
1
|
-
|
|
|
Inputs Ending Address
|
9
|
-
|
|
|
Task
(Grayed if module in other than local)
|
MAST
|
FAST
AUX0
AUX1
AUX2
AUX3
|
fixed to MAST if module in other than local
|
|
Module_Configuration
|
|||
|
Resolution
|
1.0 Deg
|
0.1 Deg
|
|
|
Output Unit
|
Centigrade
|
Fahrenheit
|
|
|
Value Type
|
Temp
|
Raw Value
|
|
|
Channels
Channel1
|
|||
|
Disable
|
No
|
Yes
|
|
|
Wire
|
4 wire
|
2 wire
3 wire
|
|
|
Type
|
"Pt 100, -200 to 850"
|
"Pt 200, -200 to 850"
"Pt 500, -200 to 850"
"Pt 1000, -200 to 850"
"Ni 100, -200 to 850"
"Ni 200, -200 to 850"
"Ni 500, -200 to 850"
"Ni 1000, -200 to 850"
"R, 0 to 766,66 ohms"
"R, 0 to 4000 ohms"
"Apt 100, -100 to 450"
"Apt 200, -100 to 450"
"Apt 500, -100 to 450"
"Apt 1000, -100 to 450"
|
|
|
Channel2-Channel8
|
see Channel1
|
||
