Parameter Configuration
|
|
|
Original instructions
|
|

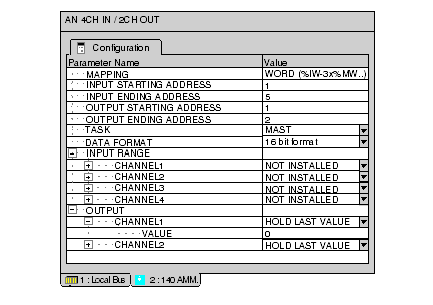

Parameter Configuration
|
|
|
Original instructions
|
|
Name
|
Default Value
|
Options
|
Description
|
|---|---|---|---|
|
Mapping
|
WORD (%IW-3X%MW-4X)
|
-
|
|
|
Inputs Starting Address
|
1
|
-
|
|
|
Inputs Ending Address
|
4
|
-
|
|
|
Outputs Starting Address
|
1
|
-
|
|
|
Outputs Ending Address
|
2
|
-
|
|
|
Task
(Grayed if module in other than local)
|
MAST
|
FAST
AUX0
AUX1
AUX2
AUX3
|
fixed to MAST if module in other than local
|
|
Data Format
|
16 bit format
|
Volt meter
12 bit format
|
|
|
Input Range
|
|||
|
Channel1
|
NOT INSTALLED
|
-10V TO +10V
0V TO 10V
-5V TO +5V
0V TO +5V
+1V TO +5V
-20 mA TO +20 mA
0 mA TO +20 mA
+4 mA TO +20 mA
|
|
|
Channel2-Channel4
|
see Channel1
|
||
|
Output
|
|||
|
Channel1
|
HOLD LAST VALUE
|
NOT INSTALLED
USER DEFINED
|
|
|
Value
|
0
|
0-4095
|
only enabled if Channel = USER DEFINED
|
|
Channel2
|
see Channel1
|
||
