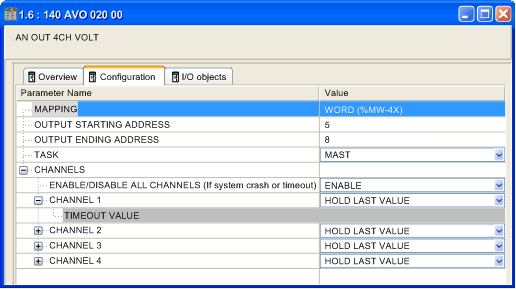

Parameter Configuration
|
|
|
Original instructions
|
|
Name
|
Default Value
|
Options
|
Description
|
|---|---|---|---|
|
Mapping
|
WORD (%MW-4X)
|
-
|
|
|
Outputs Starting Address
|
1
|
-
|
|
|
Outputs Ending Address
|
4
|
-
|
|
|
Task
(Grayed if module in other than local)
|
MAST
|
FAST
AUX0
AUX1
AUX2
AUX3
|
fixed to MAST if module in other than local
|
|
Channels
|
|||
|
ENABLE/DISABLE ALL CHANNELS...
|
ENABLE
|
DISABLE (1)
|
DISABLE all channels in case of system crash or timeout
|
|
Channel1
|
HOLD LAST VALUE
|
DISABLE
USER DEFINED
|
DISABLE option is displayed but not available.
|
|
Timeout Value
|
0
|
0-4095
|
only enabled if Channel = USER DEFINED
|
|
Channel2-Channel4
|
see Channel1
|
||
|
Legend
|
|||
|
(1): Output LEDs 1-4 go out when DISABLE is selected and the module goes to the inactive state.
|
|||
