Flat Addressing

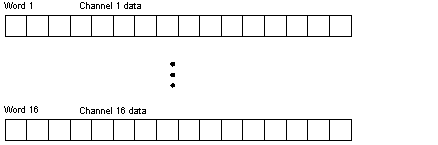

This module requires 17 contiguous, 16-bit words—16 for input data and one for channel status. The data words formats are as follows.

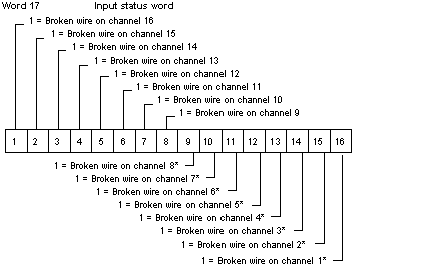

The following shows the word 17.
NOTE: The broken wire detect is set at 2.0 mA.
Topological Addressing
Topological addresses for the 140 ACI 040 00 Input Module:
Point
I/O Object
Comment
Input 1
%IW[\b.e\]r.m.1
Value
%I[\b.e\]r.m.1.1
Broken wire or under voltage
• • •
Input 16
%IW[\b.e\]r.m.16
Value
%I[\b.e\]r.m.16.1
Broken wire or under voltage
Status Word
%IW[\b.e\]r.m.17
Status of input channels
Used abbreviations: b = bus, e = equipment (drop), r = rack, m = module slot.
IODDT
The 140 ACI 040 00 Input Module uses the T_ANA_IN_VE IODDT:
IODDT Name
Object
Data Type
Name
T_ANA_IN_VE
%CH[\b.e\]r.m.c
ANA_IN_VWE
userdefined
%IWr.m.c.0
Int
.VALUE
%Ir.m.c.1
Bool
.ERROR
Used abbreviations: r = rack, m = module slot, c = channel, b = bus, e = equipment (drop).
Bus and Drop default to 1 if not specified and can be left off.
NOTE: In Quantum IODDTs for analog modules and expert modules the data type Bool is used for %I and %Q.
I/O Map Status Byte
The I/O map status byte is used by the 140 ACI 040 00 Input Module as follows.
