Indicators

Version Label Figure

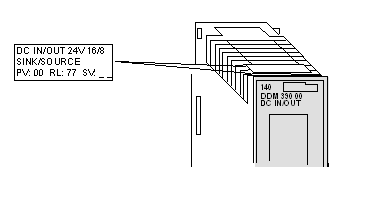

The following figure shows the location of the version label.

Illustration

The following table shows the LED indicators for the 140 DDM 390 00 module.

Descriptions

The following table shows the LED descriptions for the 140 DDM 390 module.

LEDs	Color	Indication when ON
Active	Green	Bus communication is present.
F	Red	A fault (external to the module) has been detected.
1 ... 8 (left columns)	Green	The indicated output point and channel is turned ON.
1 ... 16 (right two columns)	Green	The indicated input point and channel is turned ON.
