Function
The 140 DDO 364 00 module switches 24 VDC powered loads. Outputs are thermally protected.
Illustration

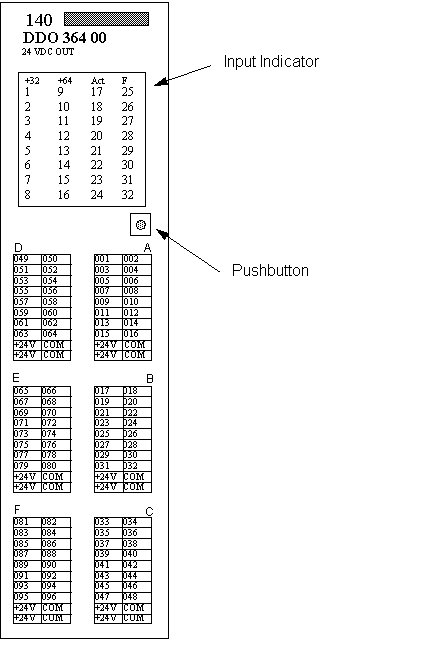

The front view of the 140 DDO 364 00 output module
Recommended Cables
The following table shows recommended cables, description, and their length in meters.
Cable Part Number
Description
Length (M)
TSXCDP301
(1) HE 10 - flying leads
3
TSXCDP501
(1) HE 10 - flying leads
5
TSXCDP053
(2) HE 10 - round cable
0.5
TSXCDP103
(2) HE 10 - round cable
1
TSXCDP203
(2) HE 10 - round cable
2
TSXCDP303
(2) HE 10 - round cable
3
TSXCDP503
(2) HE 10 - round cable
5
Compatible Output Adapter Sub-Bases
The following tables shows the compatible output adapter sub-bases..
Channels
Type
8
ABE-7S08S2xx1
8
ABE-7R08Sxxx/7P08T3301
16
ABE-7R16Sxxx
16
ABE-7R16Txxx/7P16Txxx
1With the splitter sub-base ABE-7ACC02
