The 140 DDO 353 01 source module switches 24 VDC powered loads, and is short circuit and overload resistant.

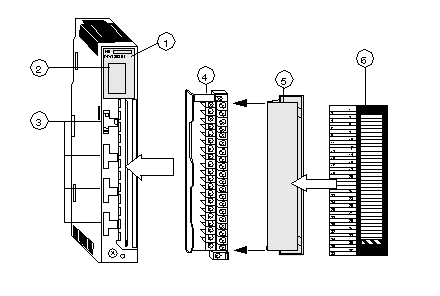

The following figure shows the 140 DDO 353 01 module and its components.
1
Model Number, Module Description, Color Code
2
LED Display
3
Fuse Cutouts
4
Field Wiring Terminal Strip
5
Removable Door
6
Customer Identification Label (Fold label and place it inside door)
NOTE: The field wiring terminal strip (Modicon #140 XTS 002 00) must be ordered separately. (The terminal strip includes the removable door and label.)
